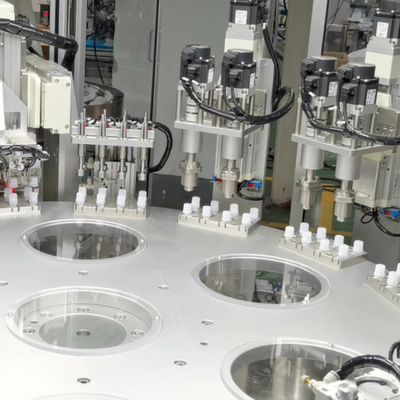

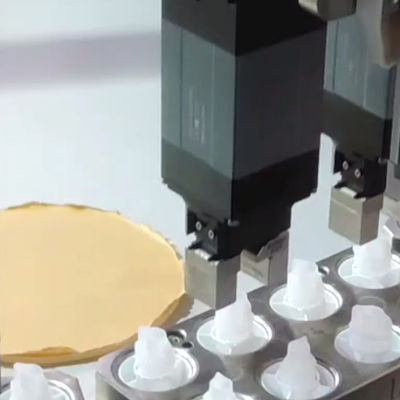

Stainless Steel Cap Screwing Machine for Bottle Capping

Marka Adı:	SENCAN
Model Numarası:	SC-TP-745
Adedi:	1 set
fiyat:	Negotiate the price according to actual situation
Ödeme Koşulları:	T/T, L/C
Tedarik Yeteneği:	3-20 set

Detay Bilgisi

Ürün Tanımı

Detay Bilgisi

Menşe yeri:

Çin

Sertifika:

CE, ISO9001

Garanti:

1 yıl

Malzeme:

Paslanmaz çelik

Ana makine boyutu:

L1200*W900*H1670mm

Hava basıncı:

0.6-0.8mpa

Güç kaynağı voltajı:

AC380V 50/60Hz

Hız:

Ayarlanabilir

Uygulama:

Çeşitli sıvılar için şişe kaplaması

Ana malzeme:

Paslanmaz çelik

Ambalaj bilgileri:

Ahşap kasa

Vurgulamak:

stainless steel bottle capping machine

cap screwing machine for bottles

stainless steel cap screwing machine

Ürün Tanımı

Features

1. Customize rotary or loop type machine for customer’s capacity requirements.

2. Main power from servo motor + reducer unit, which provide intermittent motion and fixtures are in a static during assembling, high accuracy and qualified rate can be achieved.

3. Screw in place precisely, no twist angle and twist broken occur.

4. Does not destroy appearance of product, high qualified rate performed.

5. Option screw force detector for torque requirements.

6. Detection after each assembly process, 100% real qualified products.

7. All part made of stainless steel or aluminum alloy, in accordance with GMP requirements.

8. PLC control system, touch screen HMI operation.

9. Simple maintenance easy operation. No high technical requirement for Operator.

10. Easy maintenance of spare parts, short time replacement.

Properties

Applicable products	Parts require screw fasten assembling, jujce cap , daily cap
Production speed	2500-10000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%(depend on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 3kw/hr
Dimension	Varied with different product and output
Weight	About 1500kg
Operator	1set/person
