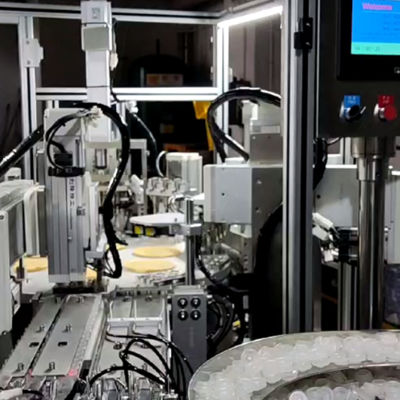

Customizable CRC Cap Assembly Machine with Touch Screen Operation and High Production Capacity

Marka Adı:	SENCAN
Model Numarası:	SC-TP-789
Adedi:	1 set
fiyat:	Negotiate price according to actual situation
Ödeme Koşulları:	T/T, L/C
Tedarik Yeteneği:	3-20 set

Detay Bilgisi

Ürün Tanımı

Detay Bilgisi

Menşe yeri:

ÇİN

Sertifika:

CE, ISO9001

Boyut:

özelleştirilebilir

Kontrol:

Plc

Güç kaynağı:

220v, 50Hz

Uygun Kapak Çeşitleri:

CRC kapakları

Ürün türü:

Montaj makinesi

Çalışma modu:

Otomatik

Operatör:

1 takım/kişi

Çalışma yöntemi:

Dokunmatik Ekran Kontrolü

Güç kaynağı:

Elektrikli

Üretim kapasitesi:

4500-12000/saat

Başvuru:

CRC ürünleri için kapak montajı

Ameliyat:

Dokunmatik ekran

Nitelikli Ürün Hızı:

% 99'un üzerinde

Kontrol sistemi:

Plc

Ambalaj bilgileri:

Ahşap kasa

Vurgulamak:

Customizable CRC Cap Assembly Machine

Touch Screen Operation CRC Cap Assembly Machine

High Production Capacity CRC Cap Assembly Machine

Ürün Tanımı

Features

1. This equipment is applied for assembly of medicinal flange cover, duck tongue cover, spring cover and other moisture-proof agents, desiccant bottle caps.

2. Can be used for molecular sieve, silica gel and other granular desiccant automatic filling, can also be used for block desiccant, desiccant core assembly.

3. The equipment has automatic punching and cutting film mechanism (sealing paper), which can reduce the production cost of customers and improve the qualified rate of products.

4. Centralized processing of sealing paper waste to reduce the workload of operators.

5. Connect the desiccant centralized supply bin, reduce the desiccant in the assembly process of moisture absorption and pollution.

6. Circular cover adopts feeding machine, feeding stable and fast.

7. The main power is composed of servo motor + splitter, with stable running speed and high assembly accuracy.

8. Each assembly step is equipped with testing function to ensure 100% of qualified products.

9. With automatic counting function, easy to output statistics.

10. Good and defective products shall be exported separately.

11. control system adopts PLC control, man-machine interface operation, reduce the operator's work difficulty.

12. Equipment can be customized according to customers' actual production capacity and product specifications.

13. It can be connected with injection molding machine and image detection machine to form a whole automatic production line.

Properties

Applicable products	desiccant cap, silica gel desiccant cap, moisture-proof lid, safety cap,CRC cap
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V.50Hz.4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2000kg
Operator	3sets/2persons,recommend 1set/person
