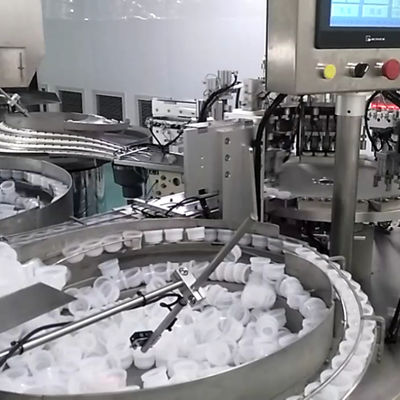

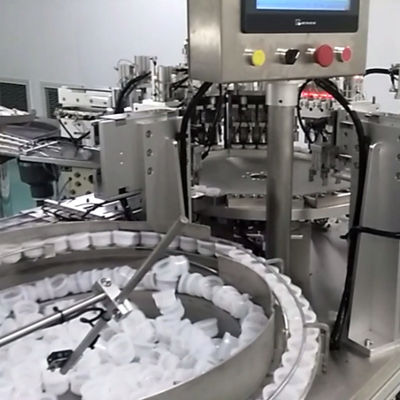

Automatic Euro Cap Assembly Machine with Touch Screen Operation Pneumatic Power and Automatic Inspection for Pharmaceutical Use

Automatic Euro Cap Assembly Machine with Touch Screen Operation Pneumatic Power and Automatic Inspection for Pharmaceutical Use
Automatic Euro Cap Assembly Machine with Touch Screen Operation Pneumatic Power and Automatic Inspection for Pharmaceutical Use Automatic Euro Cap Assembly Machine with Touch Screen Operation Pneumatic Power and Automatic Inspection for Pharmaceutical Use

Büyük resim :  Automatic Euro Cap Assembly Machine with Touch Screen Operation Pneumatic Power and Automatic Inspection for Pharmaceutical Use

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: SENCAN
Sertifika: CE, ISO9001
Model numarası: SC-TP-798
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 set
Fiyat: Negotiate price according to actual situation
Ambalaj bilgileri: Ahşap kasa
Teslim süresi: 90 gün
Ödeme koşulları: T/T, L/C
Yetenek temini: 3-20 set
Detaylı ürün tanımı
Hava basıncı: 0.6-0.8mpa Kontrol sistemi: Plc
Çalışma arayüzü: Dokunmatik ekran Operatör: Bekar
Ana sürüş: Servo motor ve indeksleme diski Güç tüketimi: 1.5kw
Model: Kapak Montaj Makinası Makine boyutu: 1200mm x 800mm x 1500mm
Şişe Yükseklik Aralığı: 50-200mm Ürün büyüklüğü: Büyük
Ürün gücü: 380V Üretim kapasitesi: 4500-22000/saat
Ana güç: Servo Motor Malzeme: paslanmaz çelik
Vurgulamak:

Touch Screen Operation Euro Cap Assembly Machine

,

Automatic Inspection Euro Cap Assembly Machine

,

Pneumatic Power Euro Cap Assembly Machine

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.



Properties

Applicable products

Loop pull cap, double pull cap, single fold closure, double fold cap, break caps

Production speed

3600-1400pcs/hr (according to customer’s requirement)

Rate of qualified product

Above 99%

Rate of operation rate

Above 95%

Power source

AC380V,50Hz,4kw/hr

Dimension

Actual size varied with different production speed

Weight

About 2300kg

Operator

3sets/2persons,recommend 1set/person
