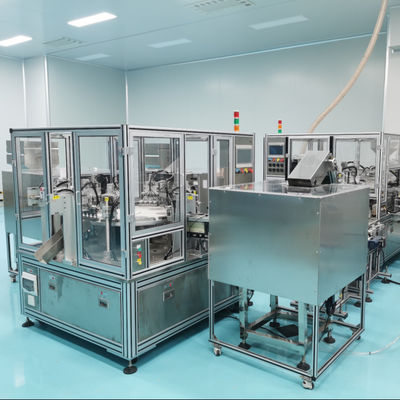

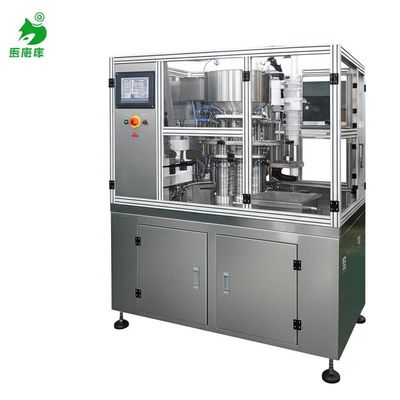

Automatic Desiccant Cap Assembly Machine with 1500-8500pcs/hr High Efficiency and 98% Qualified Rate

Marka Adı:	SENCAN
Model Numarası:	SC-TP-813
Adedi:	1 Takım
fiyat:	Negotiate price according to actual situation
Ödeme Koşulları:	T/T,L/C
Tedarik Yeteneği:	2-20 Takım

Detay Bilgisi

Menşe yeri:

ÇİN

Sertifika:

CE, ISO9001

Kapasite:

Müşterinin

Aktif kuvvet:

Servo Motor

Boyut:

Kompakt

Mekanizma:

Servo

Ürün Operasyonu:

Otomatik

Çalışma arayüzü:

Dokunmatik Ekran

Kontrol Sistemi:

PLC kontrolü

Hava basıncı:

0.5-0.8mpa

Ürün fonksiyonu:

Kurutucu kapak

Otomasyon notu:

Otomatik

Verimlilik oranı:

%95'in üzerinde

Nitelikli Oran:

%98

Ürün rengi:

Gümüş

Ambalaj bilgileri:

Tahta sandık

Vurgulamak:

Ürün Tanımı

Desiccant Cap Silica Gel Filling Sealing Cap Assembly Machine

Key Features

Automatic assembly of desiccant caps for pharmaceutical and healthcare applications
Precision filling of granular/powder desiccants (molecular sieve, silica gel) and capsule/core insertion
Integrated punching and cutting system for sealing paper reduces costs and improves product quality
Automatic waste collection system minimizes operator labor
Protected desiccant supply bin prevents moisture contamination
High-speed, stable round cap feeding system
Comprehensive quality checks ensure 100% product qualification
Built-in production counting for accurate statistics
Separate exits for qualified/unqualified products
Servo motor + indexing drive provides stable operation and high assembly accuracy
User-friendly PLC control system with touch screen interface
Customizable to meet specific capacity and specification requirements
Compatible with injection molding machines, camera inspection systems, and other equipment for complete production line integration

Technical Specifications

Applicable Products	Desiccant cap, silica gel desiccant cap, safety cap, CRC cap
Production Speed	1500-8500pcs/hr (customizable)
Product Qualification Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies by production speed
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
