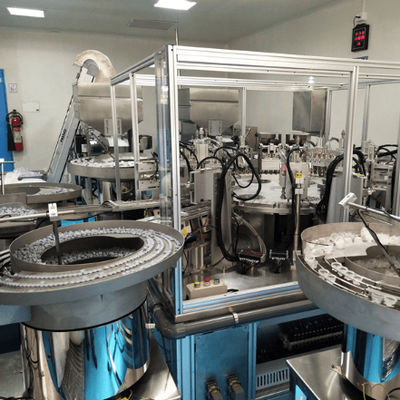

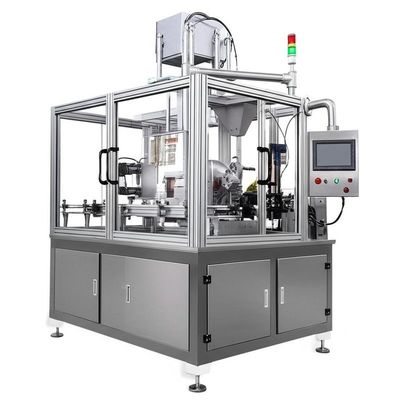

High-Speed Euro Cap Assembly Machine with 14000 Caps per Hour 95% Operation Rate and AC380V Power Source

Büyük resim : High-Speed Euro Cap Assembly Machine with 14000 Caps per Hour 95% Operation Rate and AC380V Power Source

Ürün ayrıntıları:

Menşe yeri:	ÇİN
Marka adı:	SENCAN
Sertifika:	CE, ISO9001
Model numarası:	SC-TP-819

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Takım
Fiyat:	Negotiate price according to actual situation
Ambalaj bilgileri:	Tahta sandık
Teslim süresi:	90 Gün
Ödeme koşulları:	T/T,L/C
Yetenek temini:	2-20 Takım

İletişim

Detaylı ürün tanımı

Kontrol:	PLC'ler	Çalışma Hızı:	% 96
Çalışma türü:	TUTREBLE/MEKANİK	Ürün malzemesi:	maden
Ürün markası:	euro	Güç Kaynağı:	AC380V,50Hz
Garanti Süresi:	1 yıl	Aktif kuvvet:	Servo motoru veya silindir
Çalışma modu:	Otomatik	Modeli:	Kapak Montaj Makinası
Montaj hızı:	Saatte 14000 kapak
Vurgulamak:	14000 caps per hour Euro Cap Assembly Machine , 95% Operation Rate Cap Assembly Machine , AC380V Power Source Infusion Cap Assembly Machine

High-Performance Euro Cap Assembly Machine for Consistent Output

Product Features

Automated assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces polished for optimal product protection
Automatic foil cutting and welding process
Integrated quality check function at each assembly stage to eliminate defects
PLC control system with user-friendly human-machine interface operation
Servo motor + indexing drive power system for high assembly precision and qualification rates
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to meet specific product specifications and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
