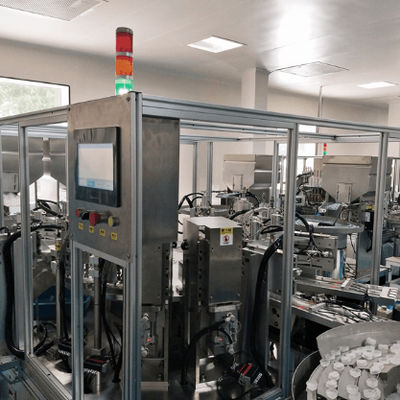

High Precision Euro Cap Assembly Machine with 99% Qualified Rate and 95% Operation Rate for IV Infusion Bags

Marka Adı:	SENCAN
Model Numarası:	SC-TP-821
Adedi:	1 takım
fiyat:	Negotiate price according to actual situation
Ödeme Koşulları:	T/T,L/C
Tedarik Yeteneği:	2-20 Takım

Detay Bilgisi

Ürün Tanımı

Detay Bilgisi

Menşe yeri:

Çin

Sertifika:

CE, ISO9001

Operasyon lastik:

Pikap

Uygulanabilir Kapaklar:

Euro Caps

Ürün Boyutu:

Büyük

Kesinlik:

Yüksek

Ürün Tipi:

Montaj makinesi

Renk:

Paslanmaz çelik metalik renk

Çalışma arayüzü:

Dokunmatik Ekran

Garanti:

1 yıl

Üretim kapasitesi:

/Saat başına 4500-16000

Güç Kaynağı:

220v/50Hz

Hava basıncı:

0.6-0.8mpa

Yapılandırma:

İnfüzyon Flim Cap Montaj Makinesi

Ürün modeli:

Tıbbi infüzyon kapakları

Ürün markası:

euro

Gerilim:

220V

Ambalaj bilgileri:

tahta sandık

Vurgulamak:

99% Qualified Rate Euro Cap Assembly Machine

95% Operation Rate Euro Cap Assembly Machine

220V/50Hz Euro Cap Assembly Machine

Ürün Tanımı

Customizable Euro Cap Assembly Machine

A precision-engineered solution for automatic assembly of peel seal foil caps, designed to meet your specific production requirements while maintaining high quality standards.

Key Features

Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel + aluminum alloy materials, fully compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces are polished for optimal product protection
Automated foil cutting and welding process
Integrated quality check function at each assembly stage to eliminate defective products
User-friendly PLC control system with human-machine interface, requiring minimal operator training
High-precision servo motor + indexing drive system ensures superior assembly accuracy
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to match your product specifications, capacity needs, and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
