High-Speed Euro Cap Assembly Machine with 3600-1400pcs/hr Production and 0.6-0.8MPa Air Pressure for Infusion Caps

Marka Adı:	SENCAN
Model Numarası:	SC-TP-821
Adedi:	1 takım
fiyat:	Negotiate price according to actual situation
Ödeme Koşulları:	T/T,L/C
Tedarik Yeteneği:	2-20 Takım

Detay Bilgisi

Ürün Tanımı

Detay Bilgisi

Menşe yeri:

Çin

Sertifika:

CE, ISO9001

Güç Kaynağı:

Elektrik

Kesinlik:

Yüksek

Mekanizma:

Servo

Tatmin edici oran:

% 99'un üzerinde

Yapılandırma:

Denetim Makinesi

Renk:

Paslanmaz çelik metalik renk

Çalışma yöntemi:

Pikap/mekanik

uygun kapaklar:

Euro Caps

Kapak türü:

Avrupa sınırı

Uygulanabilir ürün:

İnfüzyon Kapağı

Kontrol Sistemi:

Plc + dokunmatik ekran

Operasyon Arayüzü:

Dokunmatik Ekran

Hava basıncı:

0.6-0.8mpa

Ambalaj bilgileri:

tahta sandık

Vurgulamak:

3600-1400pcs/hr Euro Cap Assembly Machine

0.6-0.8MPa Air Pressure Infusion Cap Assembly Machine

Above 95% Operation Rate Automatic Cap Assembly Machine

Ürün Tanımı

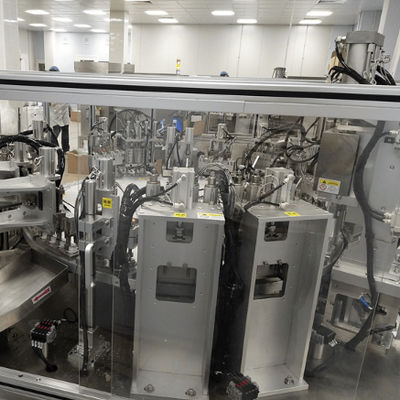

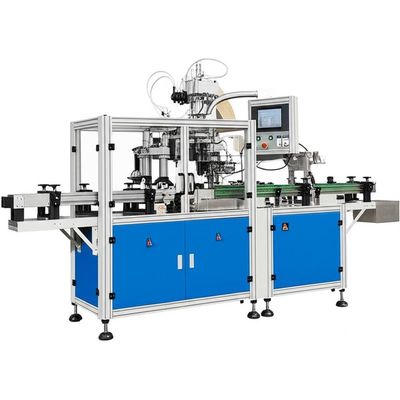

Professional Euro Cap Assembly Machine

A high-performance automated solution for assembling caps on plastic IV infusion bags and bottles, designed to meet rigorous manufacturing standards.

Key Features

Constructed with stainless steel + aluminum alloy, compliant with ISO and GMP standards
Independent workstation drive systems for easy maintenance
Product-contact surfaces polished for optimal product protection
Servo-linked rod structure ensures consistent pressing quality across all workstations
Integrated inspection functions after each assembly process
User-friendly PLC control system with HMI interface
Precision servo motor + indexing drive for high assembly accuracy
Pneumatic power reduces maintenance downtime
Fully customizable to specific production requirements

Technical Specifications

Applicable Products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production Speed	3600-1400pcs/hr (customizable)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies with production speed
Weight	Approximately 2300kg
Operator Requirement	3 sets/2 persons (recommended 1 set/person)
