Euro Cap Assembly Machine with 4500-22000 per/hour Production Capacity, 99% Qualified Rate, and PLC Control for Infusion Caps

Büyük resim : Euro Cap Assembly Machine with 4500-22000 per/hour Production Capacity, 99% Qualified Rate, and PLC Control for Infusion Caps

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	SENCAN
Sertifika:	CE, ISO9001
Model numarası:	SC-TP-831

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 takım
Fiyat:	Negotiate price according to actual sitaution
Ambalaj bilgileri:	tahta sandık
Teslim süresi:	90 gün
Ödeme koşulları:	T/T,L/C
Yetenek temini:	2-20 Takım

İletişim

Detaylı ürün tanımı

Üretim kapasitesi:	4500-22000/saat	Nitelikli Oran:	%99
Kontrol:	PLC'ler	Verimlilik oranı:	%95'in üzerinde
Kapak türü:	İnfüzyon Kapağı	Başvuru:	Avrupa tarzı şişeler için Kapak Düzeneği
Yapılandırma:	Flim Cap Montaj Makinesi	uygun kapaklar:	Euro Caps
Mekanizma:	Servo	Ürün malzemesi:	maden
Otomasyon düzeyi:	Tam otomatik	Ürün boyutu:	Standart
Ana güç:	Servo Motor
Vurgulamak:	4500-22000 per/hour Euro Cap Assembly Machine , 99% Qualified Rate Infusion Cap Assembly Machine , PLC Control Automatic Cap Assembly Machine

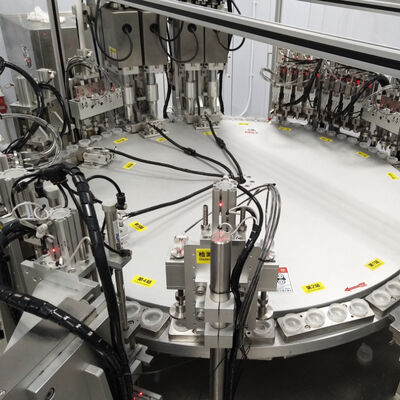

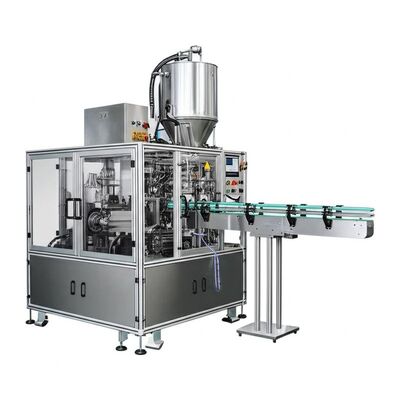

Euro Cap Assembly Machine

Designed to minimize downtime and maintenance needs while delivering exceptional cap assembly performance for plastic IV infusion bags and bottles.

Key Features

Constructed from stainless steel and aluminum alloy, compliant with ISO and GMP standards
Independent driving source at each workstation for convenient daily maintenance
Product-contact surfaces polished to protect product integrity
Servo-linked rod structure system ensures even and stable pressure for consistent cap pressing quality
Integrated inspection function after each assembly process to eliminate defective products
PLC control system with human-machine interface for easy operation
Main power composed of servo motor and indexing drive for high assembly precision
Pneumatic power system reduces maintenance time
Highly customizable to meet specific customer requirements and production demands

Technical Specifications

Applicable Products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production Speed	3600-1400 pcs/hr (customizable according to requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies with production speed requirements
Weight	Approximately 2300kg
Operator Requirements	3 sets/2 persons, recommended 1 set/person

Customization Available: Machine specifications and production capacity can be tailored to meet your specific manufacturing requirements and production volume needs.
