Non-standard customised high-standard, high-quality euro cap automated assembly machine

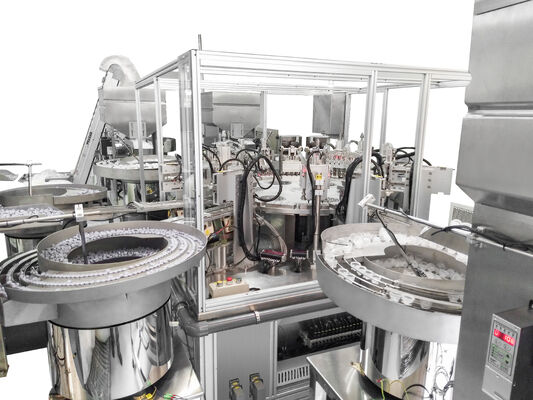

Büyük resim : Non-standard customised high-standard, high-quality euro cap automated assembly machine

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	SENCAN
Sertifika:	CE, ISO9001
Model numarası:	SC-TP-833

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 takım
Fiyat:	Negotiate price according to actual situation
Ambalaj bilgileri:	tahta sandık
Teslim süresi:	90 gün
Ödeme koşulları:	T/T,L/C
Yetenek temini:	2-20 Takım

İletişim

Detaylı ürün tanımı

Uygulanabilir ürün:	İnfüzyon şapkası, euro şapkası	Ürün adı:	Euro Cap Montaj Makinesi
Verimlilik oranı:	%95'in üzerinde	Ürün kapasitesi:	Saatte 4000-12000 kapak
Avantaj:	İnfüzyon kapağının düz kaynak yüzeyi	İftiri Türü:	titreşim diski

Euro Cap Assembly Machine

Engineered to reduce manual intervention while improving safety and consistency in cap assembly tasks for pharmaceutical packaging applications.

Key Features

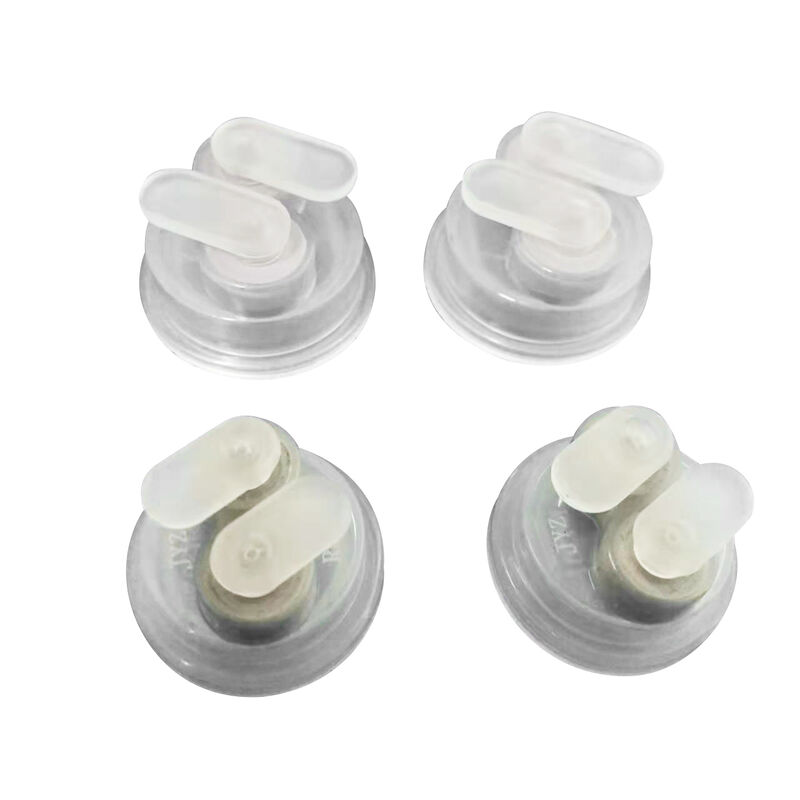

Automatic assembly of caps for plastic IV infusion bags and bottles
Constructed from stainless steel and aluminum alloy, compliant with ISO and GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces polished to protect product integrity
Servo-linked rod structure system ensures even, stable pressure for consistent cap pressing quality
Integrated inspection function after each assembly process eliminates defective products
PLC control system with user-friendly human-machine interface requires minimal operator training
Servo motor + indexing drive main power ensures high assembly precision and qualification rates
Pneumatic power system reduces maintenance downtime
Highly customizable to meet specific customer requirements and production demands

Technical Specifications

Applicable Products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production Speed	3600-12000 pcs/h (customizable to requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hr
Dimensions	Varies with production speed requirements
Weight	Approximately 2300kg
Operator Requirements	3 sets/2 persons, recommended 1 set/person
