Euro Cap Assembly Machine with 14000-15000pcs/h Capacity, PLC Control, and Stainless Steel Construction for IV Infusion Caps

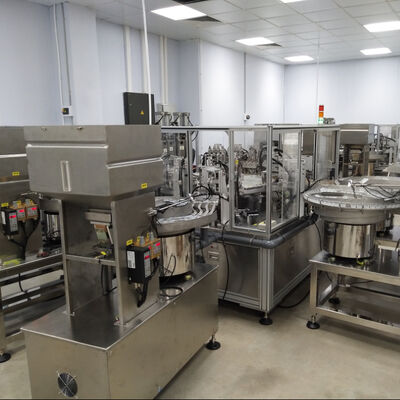

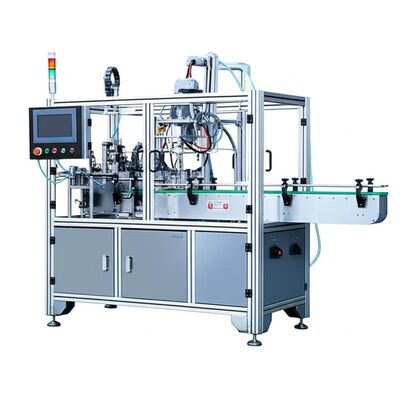

Büyük resim : Euro Cap Assembly Machine with 14000-15000pcs/h Capacity, PLC Control, and Stainless Steel Construction for IV Infusion Caps

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	SENCAN
Sertifika:	CE, ISO9001
Model numarası:	SC-TP-839

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 takım
Fiyat:	Negotiate price according to actual situation
Ambalaj bilgileri:	tahta sandık
Teslim süresi:	90 gün
Ödeme koşulları:	T/T,L/C
Yetenek temini:	2-20 Takım

İletişim

Detaylı ürün tanımı

Kontrol:	PLC'ler	Ürün adı:	Euro Cap Montaj Makinesi
Modeli:	Kapak Montaj Makinası	İşletim Arayüzü:	Dokunmatik ekran
Ürün Tipi:	Montaj makinesi	Uygulanabilir ürünler:	Euro Sınırı
Kapasite:	14000-15000 adet/saat	Sürmek:	Servo motor
Uygulanabilir Kapaklar:	Euro Caps	Avantaj:	İnfüzyon kapağının düz kaynak yüzeyi
operasyon kişisi:	1 Kişi	Sıklık:	50/60 Hz
Montaj türü:	Tam otomatik
Vurgulamak:	14000-15000pcs/h Euro Cap Assembly Machine , PLC Control Cap Assembly Machine , Stainless Steel Infusion Cap Assembly Machine

Euro Cap Assembly Machine

Automated assembly solution for fast and precise cap assembly tasks in production lines, ensuring consistent output and high efficiency.

Key Features

Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, fully compliant with GMP standards
Independent driving source for each workstation, facilitating easy daily maintenance
Product-contact surfaces are polished to ensure product protection and quality
Automated foil cutting and welding processes integrated into the machine
Comprehensive check functions after each assembly step to eliminate defective products
PLC control system with user-friendly human-machine interface, requiring minimal operator expertise
Servo motor and indexing drive power system for high assembly precision and qualification rates
Pneumatic power system reduces maintenance time and replacement complexity
Highly customizable to meet specific product specifications, capacity requirements, and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1,500-8,500 pieces/hour (customizable to customer requirements)
Product Qualification Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hour
Dimensions	Varies according to production speed requirements
Weight	Approximately 2,000 kg
Operator Requirements	3 sets/2 persons recommended, optimal configuration: 1 set/person
